Saniflo SaniCONDENS Condensate Pump With Short Operating Cycle

  • $66.30
    Unit price per
  • Save $11.70


Availability: In stock- ships same day
Shipping: FREE SHIPPING 2-5 Days UPS
Tax: No Sales Tax save up to 10%

Type:  Condensate Pump

Product #: 040
Ideal Use: Condensate Removal
Features and Benefits:
  • Pumps vertically up to 15 ft
  • Easy Installation

Product Includes:
SaniCONDENS Condensate Pump

Specifications & Installation Manual:
SaniCondens - Official Manual

Product Description:
The SaniCONDENS is a small pump that may be used to pump condensate from condensing boilers, HVAC system, water heater systems, etc.  The SaniCONDENS will pump condensate water up to 15 feet in height and/or 150 feet away from a soil stack.

Condensate water has the potential to cause property damage or even create health hazards that can affect indoor air quality.  Many times, the condensate is not able to drain through gravity to an existing drain line.  This is the reason a condensate pump is essential to many residential and commercial applications.
Easy to Install
The SaniCONDENS Condensate Pump makes installation easy and comes with an inlet and discharge adapter, a 20-foot vinyl tube that is light and flexible, and mounting tabs that easily fasten on the wall or floor during installation.
Economical
This pump has a float mechanism that controls its operation, minimizing power consumption, and an external overflow switch shuts it down or alerts you in the case of an overflow. The discharge connection bears a non-return valve that prevents water from flowing back to the unit.
Prolonged Equipment Life
The Saniflo SaniCONDENS Condensate Pump drains the condensate water away as soon as it forms in the HVAC system, boiler or water heater helping to prolong the life of your equipment.
Minimal Movement
The impeller rotates on a spindle, minimizing movement of unit parts and saving on cycle time.

Warranty:
2-Year Full Manufacturer Warranty
Extended 3-Year Warranty with Product Registration (www.Saniflo.com/Register)

How It Works:

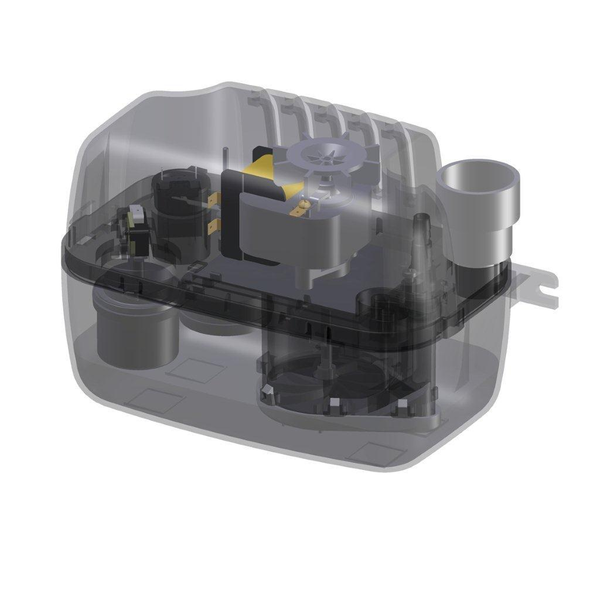

The inside of the SaniCONDENS comprises of a float mechanism, which starts and stops the unit, and the motor, which drives the pump.

When the water enters the SaniCONDENS , it activates the float mechanism, which in turn starts the motor.  The motor is sealed for life in an oil filled enclosure.  A spindle/shaft drives the impeller and therefore the moving parts are kept to an absolute minimum.  Water enters the chamber and is pumped away into the sanitary sewer.

The unit pumps the effluent upward to 15 feet and/or 150 feet horizontally (with gravity fall).  Once the water is discharged and the water level in the container goes down, the float deactivates the unit until water enters the unit again.  A normal operating cycle for the SaniCONDENS can be as short as 2 - 10 seconds depending upon the discharge pipe run configuration; power consumption is therefore minimal.

The discharge connection on the top of the unit comes equipped with a non-return valve, which prevents back flow into the unit.

It is also highly recommended for the condensate pump to be connected to a Ground Fault Interrupter (GFI) circuit.

The small, powerful pumping unit can be floor or wall mounted.  It comes with an auxiliary external overflow switch that will shut down the appliance or alert the consumer in the event of overflow.  It also includes all necessary hardware for ease of installation; 20 Ft of vinyl tubing, inlet adapter, discharge adapter.

Plumbing Code Certified:
The SaniCONDENS has been certified to American and Canadian Standards.  Electrical standard UL 788, CA:  Electrical standard CSA C22.2

The SaniCONDENS comes with the pump case only.
