Saniflo SaniGRIND Pro | Macerating Pump
The Saniflo Sanigrind Pro macerating pump is ideal for full bathroom additions. Capable of pumping vertically up to 25 feet, the Sanigrind Pro will connect your toilet, sink, washing machine, shower, and/or bath to the pump. Optional features include the SaniALARM, which issues a warning if the water level in the macerator becomes unusually high, as well as a descaler, which cleans and removes hard water deposits from the macerator.One of the most durable macerating toilet systems available on the market today, the Sanigrind Pro actually features a grinder rather than just a macerator,which makes it unique in its class. This grinder can process things like q-tips and sanitary napkins with ease, and will not clog or break. Additionally, the unit is easy to install and comes with a full, two-year manufacturer warranty for our peace of mind. Ready to learn more about the Sanigrind Pro? Contact our team today!
Type: Macerating Pump
Product #: 014
Ideal Use: Full Bathroom Addition
Features and Benefits:
- Pumps vertically up to 25 ft
- Connects a washing machine, toilet, sink, shower and/or bath
Connects with a standard, bottom outlet toilet
SaniGRIND Pro macerating pump
SaniALARM: warns if water level in macerator is unusually high
Descaler: cleaner, removes hard water deposits in macerator
Specifications & Installation Manual:
SaniGrind - Official Manual
The SaniGRIND Pro is a system that is used to install a complete bathroom up to 25 feet below the sewer line, or even up to 150 feet away from a soil stack. The SaniGRIND Pro can handle the effluent from a toilet, sink, bathtub, shower and washing machine (indirect connection).
While most of our pump range consists of shredders/macerators, the SaniGRIND Pro incorporates an actual grinder system. The SaniGRIND Pro is ideal for situations where you do not control the use of it (ie. rental unit, offices, warehouses, etc). It is designed to deal with sanitary napkins that may have been flushed down the toilet; such may consist of sanitary napkins, q-tips, dental floss, etc.
Note: In commercial installations, plumbing codes require an elongated bowl (ADA) to be installed with this system.
Warranty: 2-Year Full Manufacturer Warranty
Extended 3-Year Warranty with Product Registration (www.Saniflo.com/Register)
How It Works:

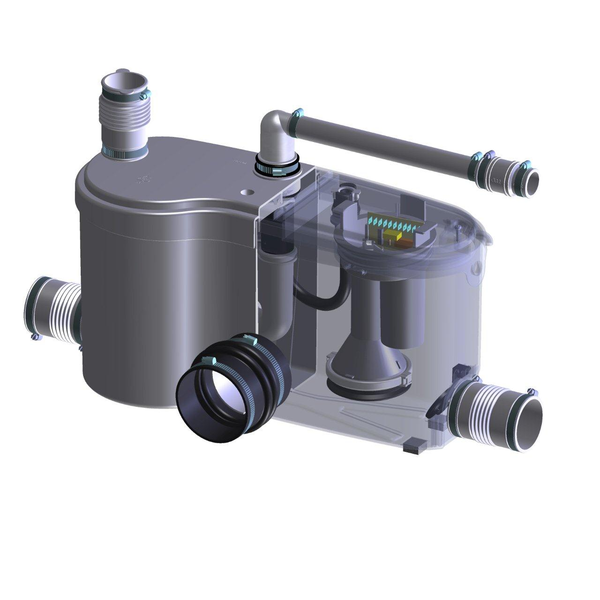

The inside of the SaniGRIND Pro comprises of a pressure chamber, which starts and stops the unit, and the motor, which drives the stainless steel cutting blade and the pump. When the flush is activated, the water flowing into the SaniGRIND Pro activates a micro switch in the pressure chamber, which in turn starts the motor. The motor is sealed for life in an oil filled enclosure. A common spindle/shaft drives the impeller and the blades. The moving parts therefore are kept to an absolute minimum. Water and organic waste matter, enter the chamber and are reduced to slurry as the blades rotate at 3600 RPM. The reduced solids are picked up at the bottom and the impeller mounted beneath the motor ejects the waste. The unit pumps the effluent upward to 25 feet and/or 150 feet horizontally (with gravity fall). Once the water level in the container goes down, the micro switch deactivates. The operating cycle for the SaniGRIND Pro varies depending upon the discharge pipe run configuration.
In addition, the SaniGRIND Pro will also discharge gray water from a variety of other sanitary fixtures such as: a sink, a bathtub/shower, a urinal and even a washing machine (indirect connection). When adding a bathtub/shower, there should be a height difference between the bottom side inlet of the pump and the base of the bathtub or shower. This height difference should be of 6" (minimum) or 8" (recommended), to allow for the installation of a P-trap and the required 1/4" per foot gravity flow towards the pump unit.
The waste water from other sanitary fixtures is discharged into the SaniGRIND Pro via two 2-inch inlets, on either side of the housing. The discharge elbow on top of the SaniGRIND Pro can be rotated 360 degrees depending on the discharge installation. A non-return valve (included in assembly) prevents back flow into the unit.
This unit has been designed with a vent connection on the lid. All plumbing codes require connection to a vent system. Please note that the vent system should be a two-way air vent. The use of mechanical vents, air admittance valves or similar devices are not permitted as these are considered one-way air vent systems. It is highly recommended for the system to be connected to a Ground Fault Interrupter (GFI) circuit.
Periodic maintenance can be accomplished easily without having to disconnect the unit from either the toilet or the rest of the plumbing system. Through a service panel, a service contractor can easily access the electrical components as well as the level sensor mechanism of the pump.
The SaniGRIND Pro unit must be connected to a standard toilet with a bottom outlet. The maximum distance from a toilet should be no more than 36 inches.
Plumbing Code Certified:
The SaniGRIND Pro has been certified to American and Canadian Standards. Macerating standard; US: CSA Certified & IAPMO (UPC) listed - ASME A112.3.4, CA: Macerating Standard CSA B45.9.
