SaniCOMPACT COMFORT

  • $1,395.70
    Unit price per
  • Save $246.30

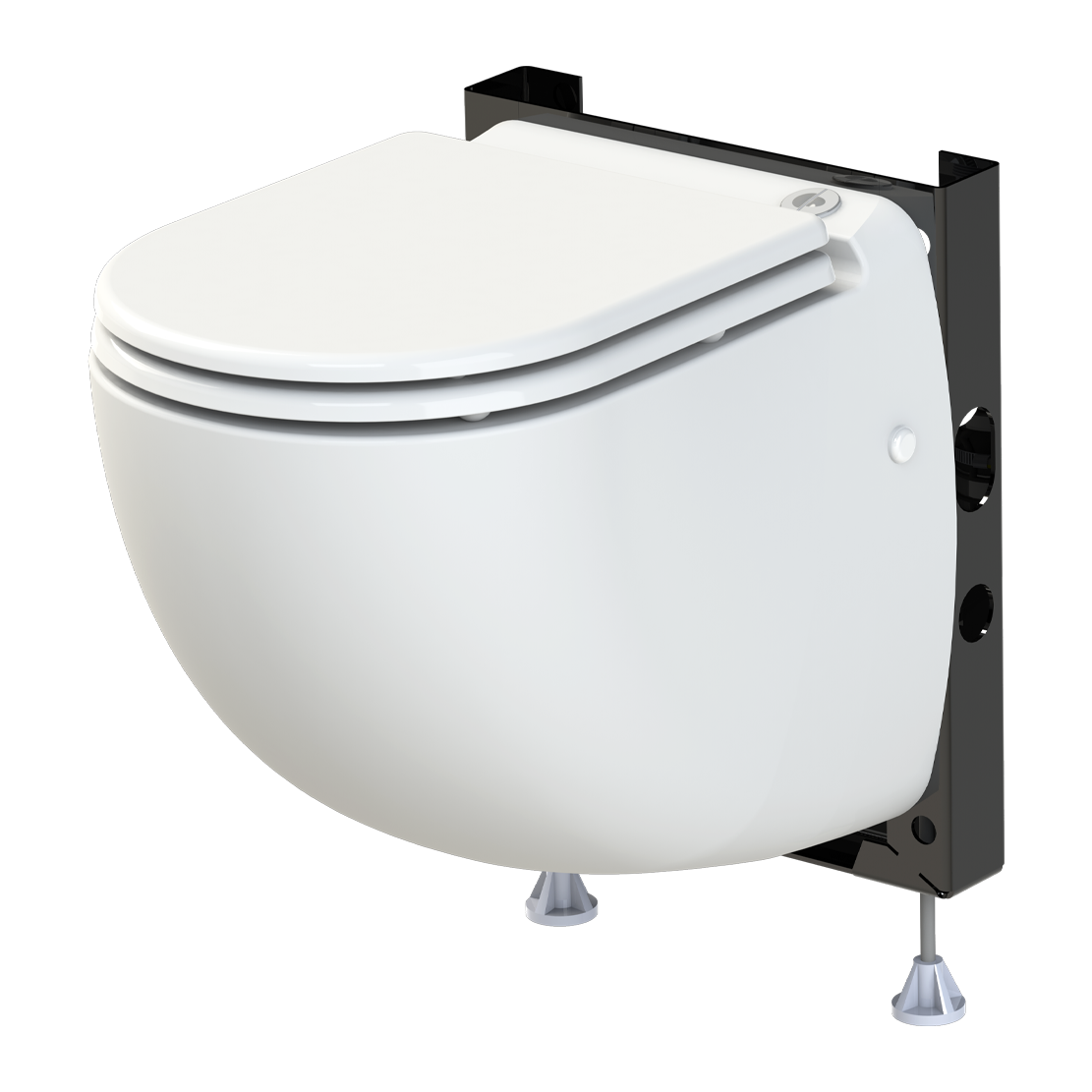

Saniflo SaniCOMPACT COMFORT

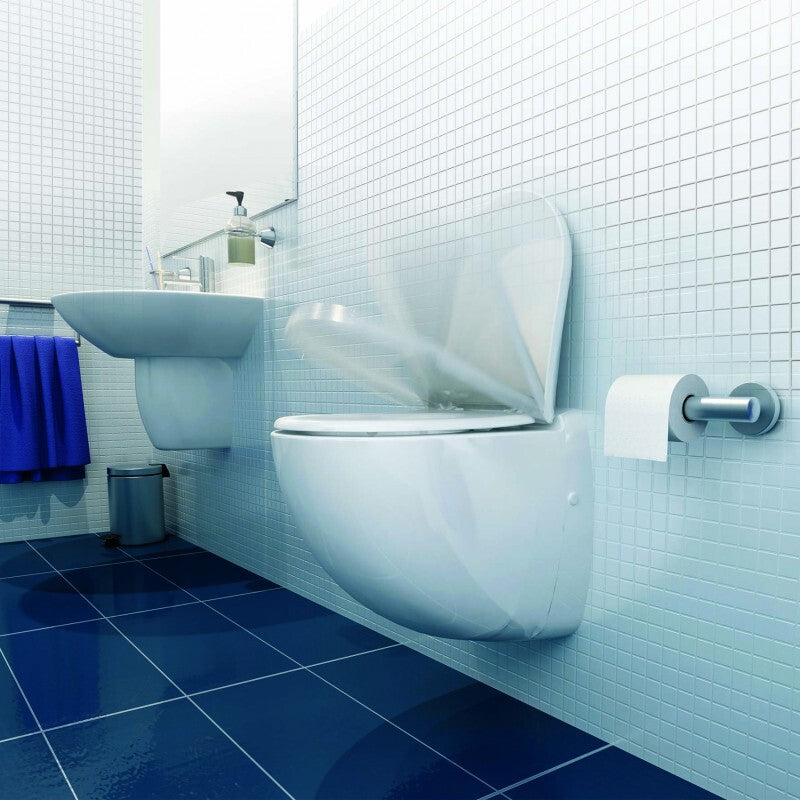

SANICOMPACT COMFORT is a wall-hung toilet with a built-in macerator. With its modern design and economical flush system, it will fit into any bathroom.

The Saniflo Sanicompact Comfort toilet system is self-contained and durable enough for residential or light commercial use. Ideal for use in a half bathroom addition, the Sanicompact Comfort one-piece upflush toilet with macerating system can pump vertically up to 9 feet.

Designed to connect to a toilet and sink, the Sanicompact Comfort wall-hung toilet combines a simple toilet bowl and a macerator pump into a single unit. This saves room and makes it easier for you to access the toilet system you want, without needing a whole bunch of additional square footage.

The SaniCompact Comfort replaced the SaniStar wall-hung Saniflo model in January 2021. In addition, it should not be confused with the SaniCOMPACT, a self-contained macerating toilet for half bathrooms.

Wondering how to install the Sanicompact Comfort? The answer is simple: you can hang it on any sturdy wall. The unit comes with an included bracket system and only needs a set of double 2 x 6 studs for mounting.

Ready to learn more? Contact us today for more information.




Type:  Macerating Upflush Toilet

Product #: 020


Ideal Use: Half Bathroom Addition

Features and Benefits:
  • Pumps vertically up to 9 ft and 120 horizontally
  • Connects a toilet, sink
  • Easy Installation
Product Includes:
SaniCompact-Comfort

Specifications & Installation Manual:

Product Description:

The Sanicompact Comfort is a combination of a vitreous china toilet bowl and macerator/pump built into one compact unit.  The Sanicompact Comfort needs no gravity flow tank as the flushing action and macerating pump cycle is automatic after pressing a push button on top of the bowl.  The flushing mechanism is electrically timed to allow water to pass through the toilet.

By pressing the push button, this activates a timer and a solenoid valve in order to fill and wash the sides of the bowl.  The motor starts and the waste and paper are sucked inside, where it is macerated and pumped away.  The motor stops after approximately 10-15 seconds and the timer programs the refill of the bowl with fresh water.

The standard dual flush version uses 1.28 gpf (4.8 lpf) and 1 gpf (3.8 lpf).  To choose either option, the unit is provided with a dual push button.  This option allows using less water than any regular toilet but with the same efficiency.

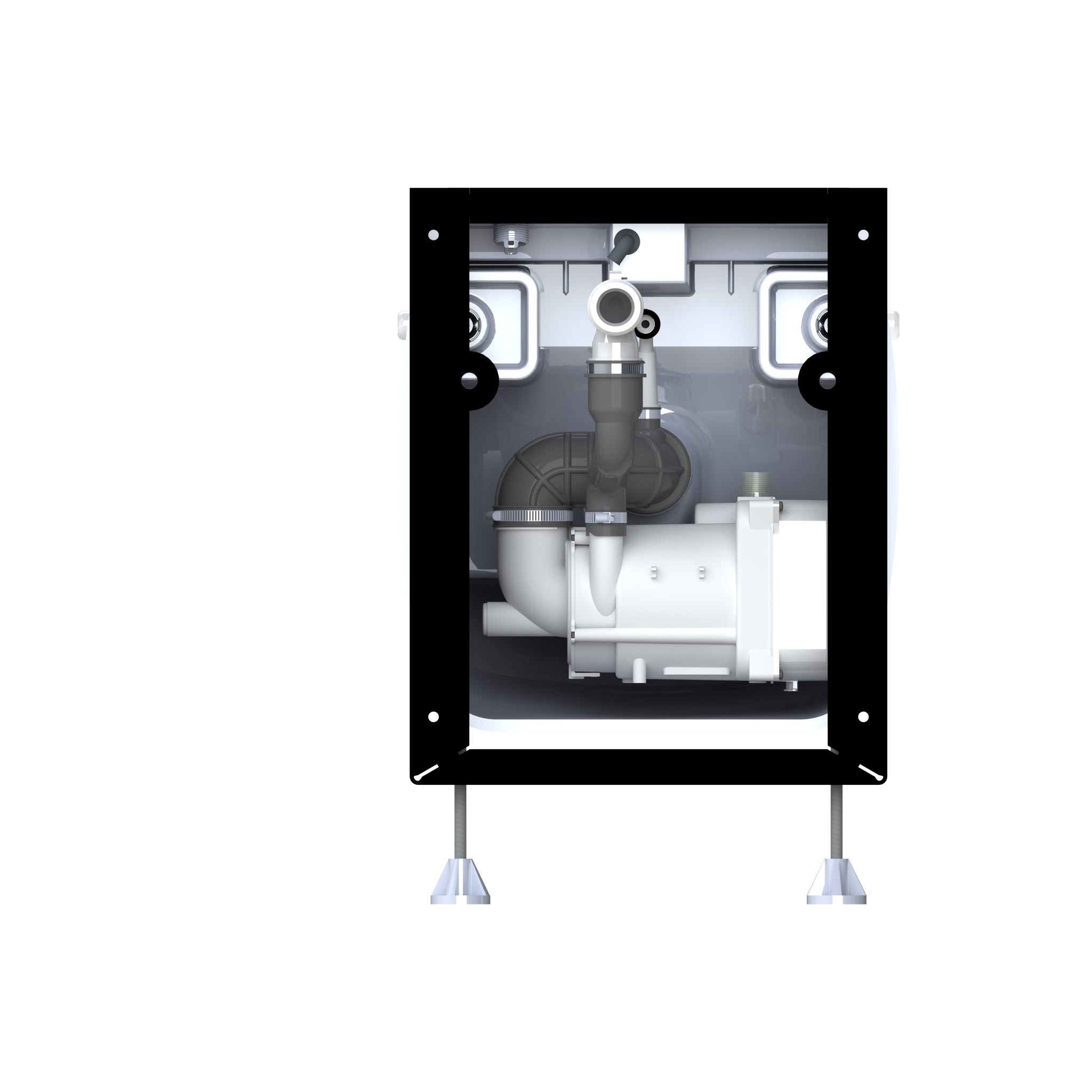

The inside of the Sanicompact Comfort comprises of a pressure switch and circuit board assembly, which starts and stops the unit, and the motor, which drives the blade and the pump.  The motor is sealed for life in an oil filled enclosure.  A common spindle/shaft drives the impeller and the macerator blades.  The moving parts therefore are kept to an absolute minimum.  Water and organic waste matter, enter the chamber and are reduced to slurry as the macerator blades rotate at 3600 RPM.  The reduced solids are picked up and the impeller mounted beneath the motor ejects the waste.  The unit pumps the effluent upward to 9 feet and/or 100 feet horizontally (with gravity fall).

The discharge elbow on the back of the Sanicompact Comfort can be rotated 360 degrees to fit any type of installation required.  A non-return valve, which comes already assembled on the discharge elbow, prevents back flow into the unit.

The Sanicompact Comfort will also discharge gray water from a sink.  The wastewater drains into a 1 1/4" hose connection in back of the toilet.  The system turns on automatically once water is drained through a sink.

The Sanicompact Comfort is a forced main and does not need to vented and connected to a vent stack.  Other fixtures may need to be vented as per local plumbing codes.

The Sanicompact Comfort saves space and can be hung on any sturdy wall.  It comes complete with a wall bracket system that can be placed against a wall or if you start from scratch, it can be built into the wall and mounted against a set of double 2 x 6 studs. The wall bracket has feet that can be adjusted to allow the Sanicompact Comfort to be hung at a height that is comfortable for the user; for example between 15 and 18 inches.

It is also highly recommended for the macerator/pump to be connected to a Ground Fault Interrupter (GFI) circuit.

The Sanicompact Comfort has been certified to the applicable electrical standard; Electrical standard UL 788, CA:  Electrical standard CSA C22.2
